Plug-in & Remote Cabinets in Comparison

We can split the refrigerated display cabinets into two types. Remote cabinets have a common central condensing system which supplies several units with the refrigerant. The cabinets have a fixed location and are connected with pipes and wires to the central compressor  rack and controller unit.

Plug-in cabinets work like a household fridge and have the compressor, condenser and controller unit built into the cabinet itself; they only need a power supply. Both systems come with several advantages and trade-offs.

Plug-in system
Remote system
Advantages

- No piping / installation needed

- No machinery room

- Very flflexible layout changes

- Lower system energy consumption

- Low-noise

- Large usable volume for products

- Wide range of multiplexing options

- Open Cabinet de-humidify store climate

Trade-offs

- Head rejection in store (bigger air condition needed)

- Less space inside the cabinet

- Regular cleaning of condenser

- Higher energy consumption

- Installation needed

- Fixed installation, not flflexible

Example title

Plug-in cabinet with characteristic machine compartment,

which includes compressor, drip water evaporation and condenser.

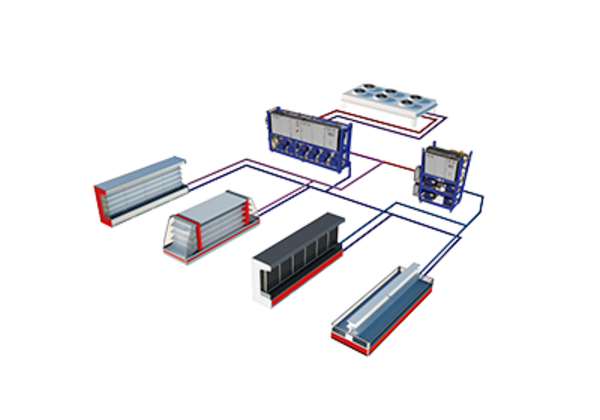

Remote cabinets connected to the central rack

with the gas cooler

Plug-in system
Remote system
Advantages

- No piping / installation needed

- No machinery room

- Very flflexible layout changes

- Lower system energy consumption

- Low-noise

- Large usable volume for products

- Wide range of multiplexing options

- Open Cabinet de-humidify store climate

Trade-offs

- Head rejection in store (bigger air condition needed)

- Less space inside the cabinet

- Regular cleaning of condenser

- Higher energy consumption

- Installation needed

- Fixed installation, not flflexible

Example title

Plug-in cabinet with characteristic machine compartment,

which includes compressor, drip water evaporation and condenser.

Remote cabinets connected to the central rack

with the gas cooler
